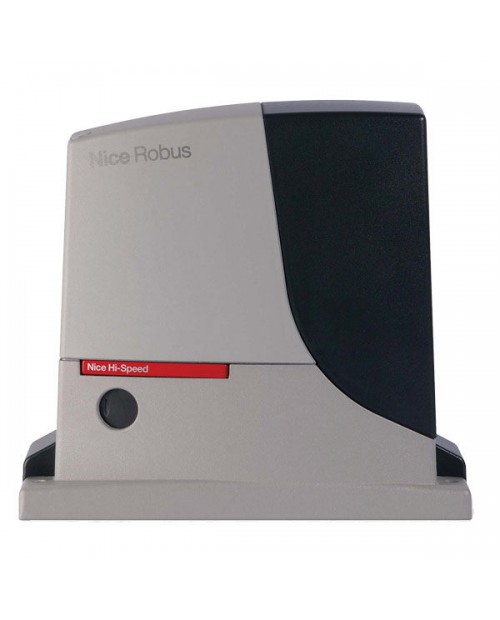

NICE Robus 500 HS

NICE ROBUS 500 KG High Speed Sliding Gate Motor in Dubai, Sharjah, Abu Dhabi, Ajman UAE.

Fast Moving For sliding gates weighing up to 500kg, with Nice BlueBus technology.
NICE ROBUS R500HS Automatic Sliding Gate Motor Moves up to 0.43m sec.
Quality Italian Made Automatic Gate Operator.
For hi-speed automation of sliding gates weighing up to 500kg or up to 8m long.
This KIT from Nice is created for sliding gates with a weight of up to 500 Kg and a length of up to 8 m works at 230 V.

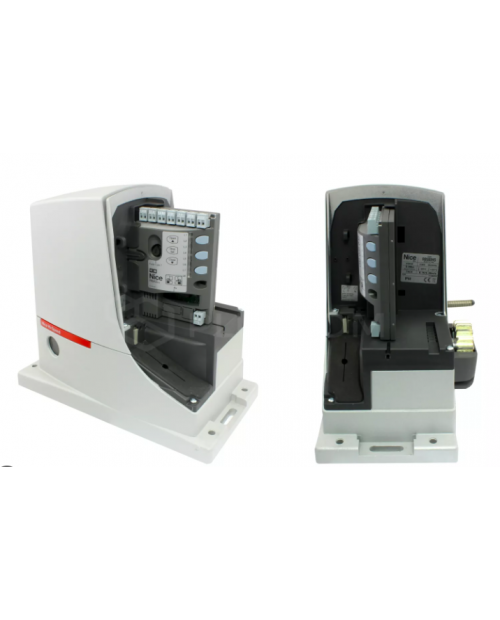

Motor RB500HSR10 from Nice created for sliding gates of up to 500 Kg and is equipped with BlueBus technology.
This allows powering and controlling a maximum of 7 pairs of photocells.
The Nice RB500HSR10 is equipped with a temperature sensor,
it adapts the engine power to the climatic conditions and at the same time protects it thermally.

NICE ROBUS 500 Kg:
Maximum wing weight: 500 Kg
Maximum leaf length: 8 m
Motor operating voltage: 230 V
Absorption: 2.2 A
Power: 450 W
Speed: 0.44 m/s
Force: 360 N
Work cycle: 20 / hour
Degree of protection: IP44
Operating temperature: - 20°C - +50°C
Dimensions: 330 x 210 x 303 mm
Weight: 11 Kg.

Receiver:
Number of channels: 4
Frequency: 433.92 MHz
Coding: BD, O-Code, Flor, TTS, Flo, Smilo
Sensitivity: 108 dBm
Input impedance: 50 Ω
Transmitter memory capacity: 1024 - unidirectional, 750 - bidirectional
Absorbed current: 50 mA
Power supply: 5V DC
Operating temperature: -20°C - +55°C
Dimensions: 49.5 x 41.9 x 18 mm
Weight: 22 g.

Set of photocells:
Technology: BlueBus
Range of action: 15 m
Operating temperature: - 20°C - + 50°C
Degree of protection: IP 44
Dimensions: 50 x 80 x 29 mm
Weight: 140 g.

Remote:
Frequency: 433.92 MHz
Number of channels: 2
Operating distance: 150/200 m with connected antenna in open spaces
Coding: 52 bit (FLOWER)
Power supply: 3Vdc, CR2032
Case protection degree: IP30
Dimensions: 58 x 86 x 22 mm
Compatibility: Flor and On
Weight: 55 g.

Signal light:
Power supply: 12 - 35 V DC
LED illuminator
Frequency: 433.92 MHz (built-in antenna)
Built-in chopper circuit
Degree of protection: IP 44
Dimensions: 132 x 72 x 155 mm.

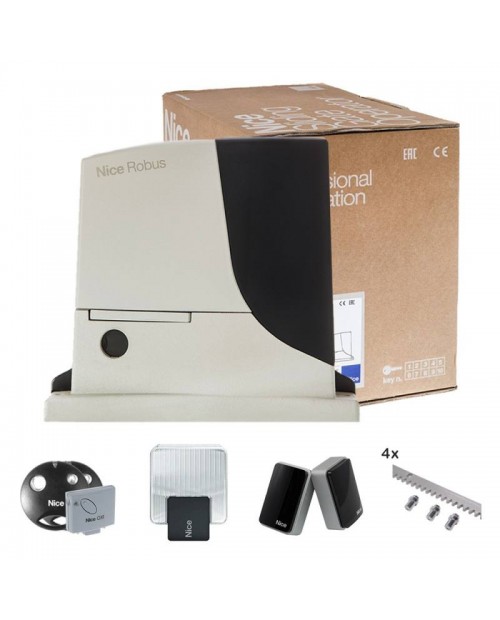

The package contains:
1 x Robus Hi-Speed ​​Nice RB500HSR10 sliding gate automation motor, 500 Kg, 8 m, 230 V.
1 x Nice OXIBD receiver, 4 channels, 433.92 MHz
1 x Nice EPMB photocell set, 15 m, IP 44
1 x Nice ELDC automation signaling lamp, 433.92 MHz, IP 44
2 x Nice FLO2RE remote control, 2 channels, 433.92 MHz
4 x Rack Nice ROA8, metal, 1 m.
